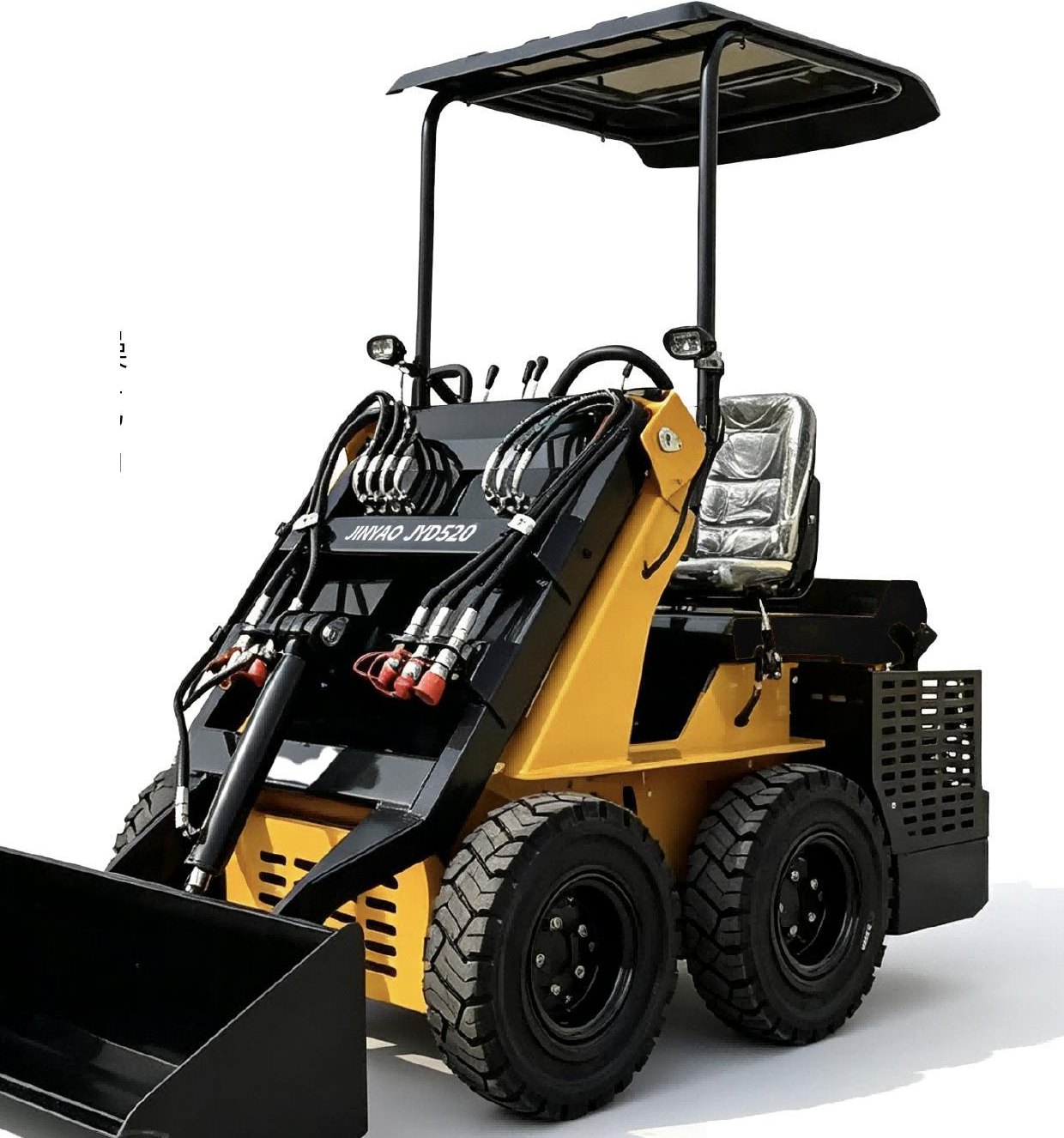

![Skid Steer Loader JYD520](["/static/uploads/products/202610/skid-steer-jyd520.jpg"])
Skid Steer Loader JYD520
JYD520 Construction Machinery
890kg wheeled skid steer loader with ride-on layout for seated operation, flexible slip steering and standard quick-change coupler — for construction, farming, landscaping and warehousing.
Specifications
| Operating Weight | 890kg |
| Bucket Capacity | 0.16m³ |
| Travel Speed | 0-8km/h |
| Gradeability | 30° |
| Working Height | 1860mm |
| Loading Height | 1420mm |
| Dumping Distance | 610mm |
| Ground Clearance | 140mm |
| Overall Length | 1750mm |
| Overall Width | 1100mm |
| Overall Height | 1250mm |
| Bucket Width/Height | 1100mm/340mm |
| Engine Brand | Zongshen |
| Engine Model | GB680 |
| Rated Power | 14.5KW |
| Max. Speed | 3600rpm |
| Number of Cylinders | 2 |
| Cooling Method | Air-cooled & Oil-cooled |
| Engine Oil Capacity | 2L |
| Fuel Type | Gasoline |
| Fuel Grade | 92# |
| Fuel Consumption | 6.7L/h |
| Main Pump Type/Model | HGP-33A-F8R/8R 二进二出 |
| Main Pump Brand | Huaheng |
| Rated Pressure (Main Pump) | 18MPa |
| Max. Pump Displacement | 6mL/r |
| Control Valve | 3+2 |
| Control Valve Brand | Taiheng |
| Rated Pressure (Valve) | 25.5MPa |
| Travel Motor Type | Lidun |
| Travel Motor Brand | BMER3-375 |
| Tension Type | Mechanical |
| Fuel Tank Capacity | 20L |
| Hydraulic Oil Tank Capacity | 37L |
| Tire Model | 6.00-9 (4.00) |
| Tire Brand | Dadi |
Overview: The JYD520 Skid Steer Loader is a multi-functional construction machine delivering flexible operation, powerful performance and high efficiency — ideal for construction projects, road works, farming, landscaping, warehousing and logistics.
Product features:
1. Strengthened sealing of oil pipes and hydraulic systems, meeting international standards.
2. Ride-on operation layout, allowing operators to work entirely while seated.
3. Flexible slip steering system with standard quick-change coupler for enhanced expansion.
